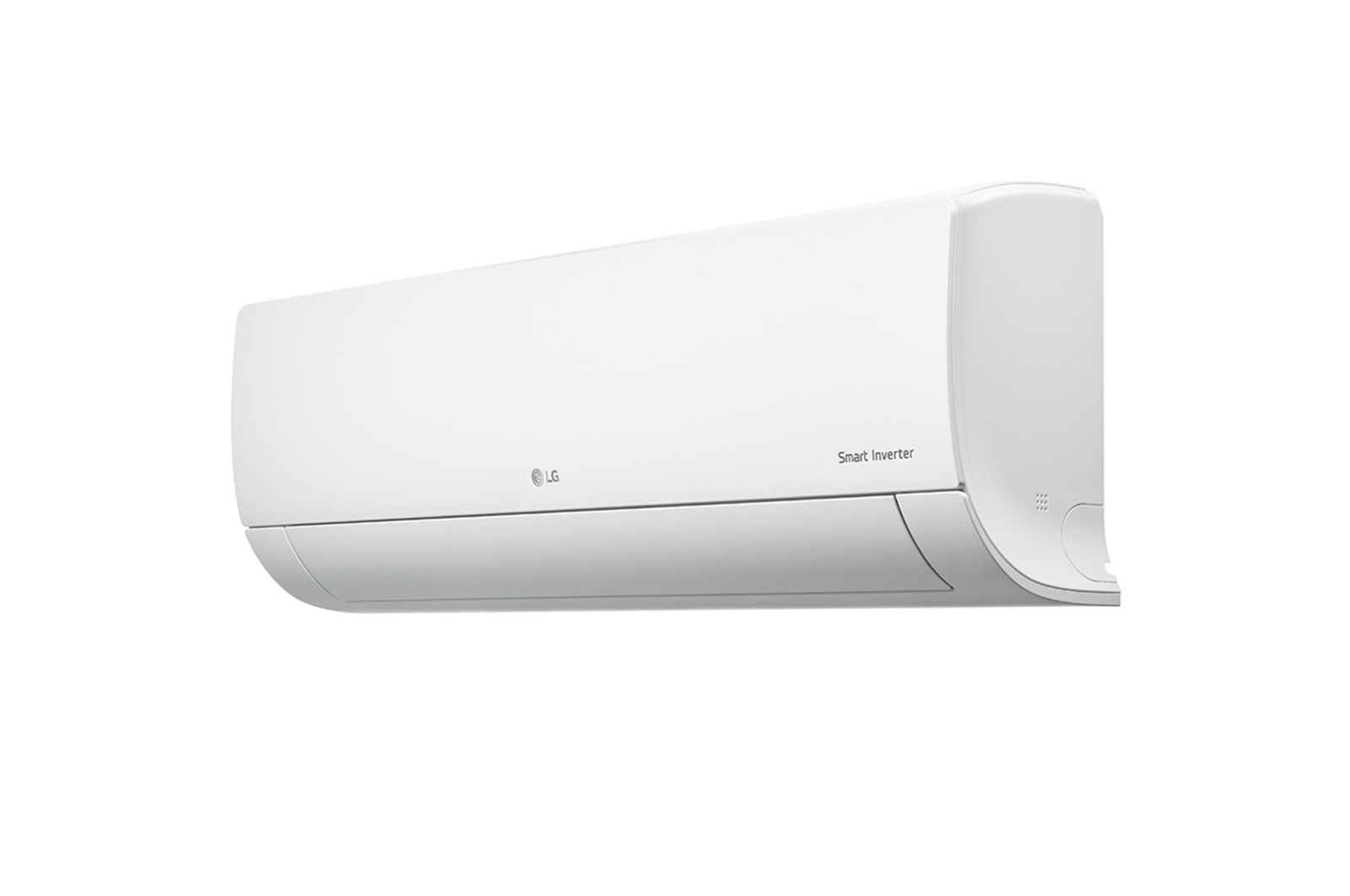

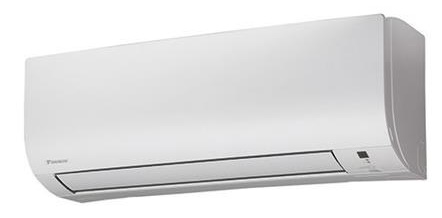

This designer air conditioning unit with a flat profile in white is intended for wall mounting (near the ceiling). The unit features a “Dual Protection” filter that removes dust particles from the air down to 10 µm in size. The filter can be removed quickly, regenerated and is easy to clean. The housing is made of plastic.
There is a removable panel on the base of the unit under which you will find all the necessary connections. There is no need to remove all the cladding elements. There is also a mounting clip that provides both sufficient distance between the wall and the unit and fixes the pipes in place to make mounting much easier. With the standard model, the WiFi control module is only an option for retrofitting.
The fan (BLDC motor) is directly driven and mounted with vibration insulation. The extremely quiet radial fan is dynamically balanced and has 4 different speeds. Skew fan: By minimising the surface pressure on the fan blades when in contact with air, peak noise is reduced to become the quietest in the world.
The direction of the vertical louvres can only be adjusted manually on the Standard model.
The Jet Cool function distributes air evenly at high speed and guarantees optimum and fast cooling.
The condensate tray is made of plastic and insulated to prevent condensation forming.  Drainage nozzles on both sides. One side features a drainage plug and the other a flexible condensate hose. This unit does not contain a condensate pump as standard.
The unit comes with an infrared remote control as standard.
Wired remote controllers cannot be connected to the Standard model.

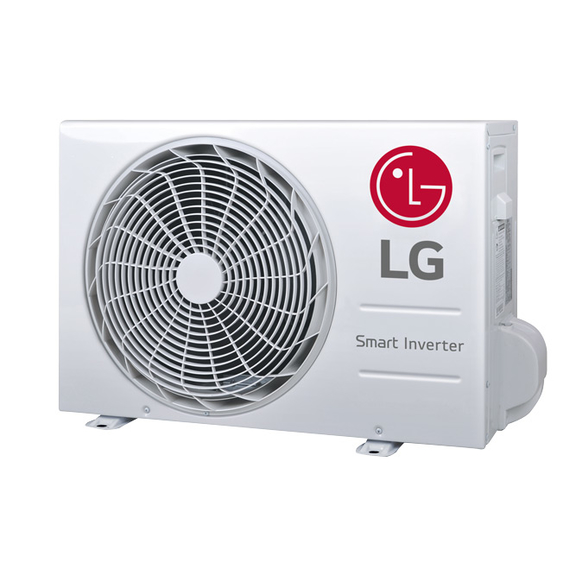

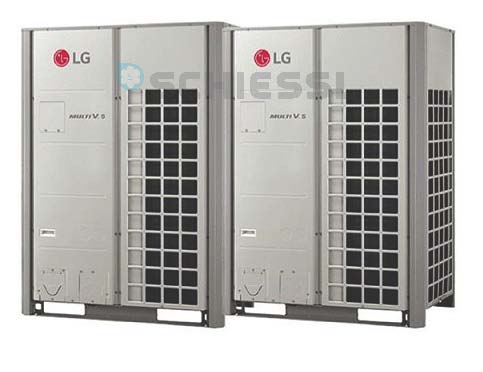

The sturdy steel housing is self-supporting and features an electrostatically applied polyester coating for optimal protection against corrosion. A set of vibration dampers is also included.
The directly driven axial fan is statically and dynamically balanced and therefore extremely quiet. The motor is protected by thermal contacts to prevent overheating.
The refrigerant circuit consists of a fully hermetic rotary piston compressor (inverter-controlled) mounted on vibration dampers. The suction gas-cooled motor has thermal protection to prevent overheating. The units feature a variety of sensors that can be used for control and for protecting the system, e.g.: hot gas, condenser, suction line and outdoor air sensors. The condenser takes the form of a high-performance heat exchanger made of copper piping with aluminium fins and a GOLD-FIN coating for optimum protection against corrosion. The refrigeration circuit is dried, evacuated and filled with R32. The refrigerant connections are located on the side of the unit for easy installation. Power is supplied via the outdoor unit. All connections have a plastic cover to protect against sabotage and external influences.

The sturdy steel housing is self-supporting and features an electrostatically applied polyester coating for optimal protection against corrosion. A set of vibration dampers is also included.
The directly driven axial fan is statically and dynamically balanced and therefore extremely quiet. The motor is protected by thermal contacts to prevent overheating.
The refrigerant circuit consists of a fully hermetic rotary piston compressor (inverter-controlled) mounted on vibration dampers. The suction gas-cooled motor has thermal protection to prevent overheating. The units feature a variety of sensors that can be used for control and for protecting the system, e.g.: hot gas, condenser, suction line and outdoor air sensors. The condenser takes the form of a high-performance heat exchanger made of copper piping with aluminium fins and a GOLD-FIN coating for optimum protection against corrosion. The refrigeration circuit is dried, evacuated and filled with R32. The refrigerant connections are located on the side of the unit for easy installation. Power is supplied via the outdoor unit. All connections have a plastic cover to protect against sabotage and external influences.

As a private customer, you can get this mobile air conditioner directly from Novaer.

The scope of delivery includes, among other things, an air hose and a remote control.

The NOVAER INUK 2.6 C01 is characterized by its compactness and ease of use. It works in three areas: cooling, dehumidifying and ventilating. In cooling mode, the condensate evaporates automatically. In dehumidification mode or in extreme heat and humidity, the condensate collects in an internal container. Alternatively, a permanent condensate drain can be connected for dehumidification.

The mobile air conditioner has a control panel with LEDs and a simple remote control (a bracket is attached to the device for this). The "SLEEP" function ensures maximum convenience and the "auto-restart" ensures restarting in the event of a power failure. The air filter is easily accessible for cleaning.

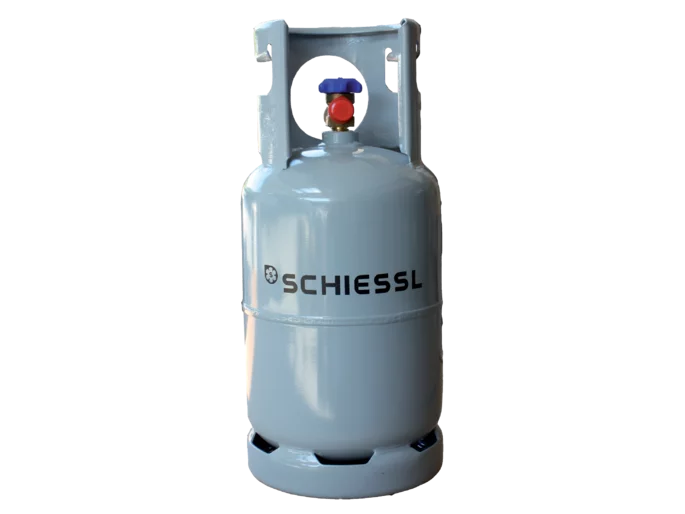

Schiessl Kältemittelflasche 12,5 l befüllt mit 11,0 kg R407F.

R407F dient als Ersatz für R22 und R404A in nachgerüsteten oder neuen Supermarkt-Kältesystemen mit der besten Kombination aus niedrigstem GWP und Energieeffizienz. Verwendung für gewerbliche Kälteanlagen mit niedrigen und mittleren Temperaturen, Plug-Ins und Verkaufsautomaten.

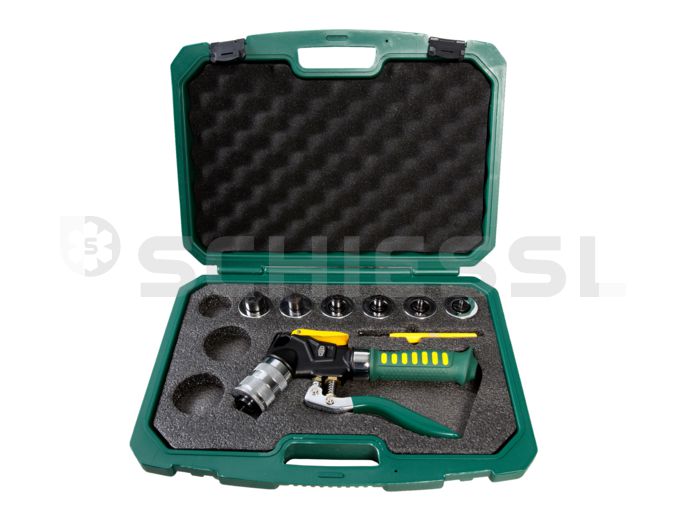

The hydraulic expander tool set with 6 expander heads suitable for metric copper tubes of 10, 12, 16, 18, 22 and 28 mm in diameter. This set contains a sturdy deburrer and is delivered in a practical plastic case. Hydraulic pressure allows this lightweight expander tool to perfectly expand copper and aluminium tubes with only a few pumping movements.

Only for soft pipes: Copper, aluminium, brass.

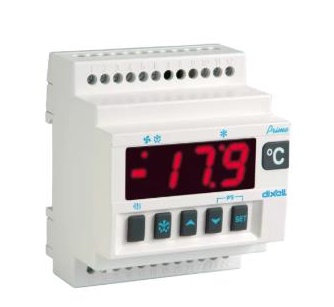

The DIN rail XR20D is an electronic temperature regulator that features one relay output and a configurable PTC and NTC sensor input for recording the room temperature.
Cyclic defrosting with parameters for stopping the compressor.
The regulator can be used solely as a thermostat by deactivating the defrosting function.
This device also features a configurable digital input.
The regulator also stores the minimum and maximum temperatures. These can be viewed using the arrow keys. Easy programming via a “hot key”.

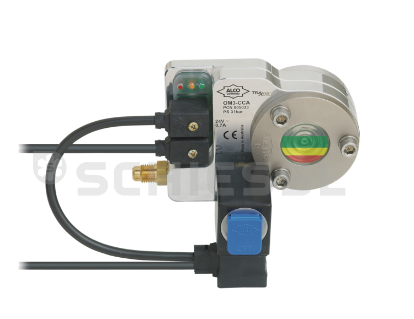

Rotalock adapter 1.1/4"-12 UNF OM3/OM4 TraxOil uses a hall sensor to measure the oil level in the compressor. A magnetic float changes its position depending on the oil level, regardless of foaming oil or direct light. Changes in the magnetic field are detected by the Hall sensor and evaluated by the electronics. After the configured delay times, the electronics control the solenoid valve located in the same casing so that oil from the reservoir can be directly injected into the compressor crankcase as needed. If the oil level enters the red zone, OW4 TraxOil raises an alarm after a time delay of 20 seconds and switches the changeover contact to alarm status (red LED). This can be used to turn off the compressor. Oil continues to be injected into the compressor while the alarm is active. If the oil level rises back into the normal range, the alarm is reset.

ESC coils are available for various supply voltages (24/120/230 V) and power ratings (17/38 VA).
Select the relevant version from the menu.

You will find a table of possible applications for ESC coils in the instruction manual under Downloads.

ATTENTION: ALCO magnetic coils come without a coil connector.
Please order a connecting cable with pre-assembled plug connector - available in different lengths. (See accessories.)

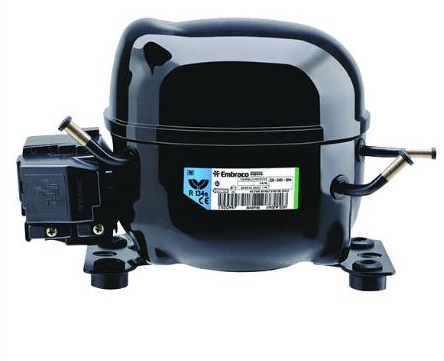

The compressors
Most compressors in the THB, AEZ/CAEZ, AE/CAE and CAJ/TAJ series have been optimised for the commercial refrigeration sector. Our range has been extended with the TAG multi-compressor units (TAGD).
We also offer a world’s first: The first horizontal rolling piston compressor for commercial refrigeration. Compact, lightweight, powerful and quiet.
The new X-series compressors for use with future refrigerants have also been introduced.
The X-series is designed for use with R404A/R507A, R134a, R452A and R513A in HP applications and for use with R404A/R507A, R452A in LP applications.
Primary areas of application: Walk-in cold storage rooms and refrigerated display cabinets, refrigeration shelving, ice makers, industrial process cooling

Advantages of the new X series
• Fewer models in stock
• Better availability
• One compressor for many refrigerants

Scope of delivery, compressor
The compressors are delivered filled with oil pressurised with nitrogen and a set of vibration dampers. The adjustable valves are delivered loose. Individually packed or as a multi-pack.


Motor compressor:

• THB, AE, RK, RG, HG series with solder connection

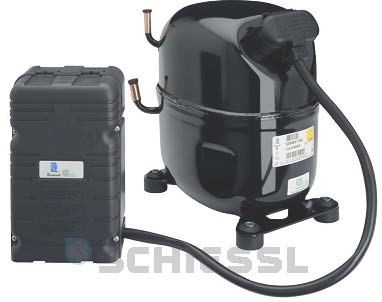

• CAJ and TAJ series with solder connection, Rotalock valve, intake side
• TFH, TAG series with Rotalock valve (solder), intake and pressure side, crankcase heater and oil inspection glass
• TFHD, TAGD series fully piped, Rotalock valve on intake side, pressure side with solder connection, crankcase heater and oil inspection glass
• TAG(D) series additionally features an internal overcurrent valve

Multi-compressor operation with motor compressors TFHP, TAGP
Up to 4 compressors in the same series can be linked together. These compressors have the same technical

features as the standard models and are additionally equipped with:

• Connection for oil equalisation line
• Connection for pressure equalisation line, intake side

Trio multi-compressor power racks
Various pre-piped power rack units with 3 compressors from the TFHP, TAGP series for different performances and refrigerants can be ordered for special production.

Emerson Climate Technologies offers its ZB compressors with capacities ranging from 5.9 to 87.5 m³/h. These include digital compressor models with technology for fully variable power regulation. Copeland Scroll compressors have only one third the number of moving parts as piston compressors and feature a Scroll Compliance mechanism that makes them particularly durable and makes them extremely reliable even under difficult conditions (e.g. liquid hammering).
They stand out for their low weight and compact size, which makes them ideal for use in condenser units, small refrigeration systems or special processing units.
The Summit series rated at 7 to 15 hp offers an annual efficiency that is up to 15% higher than that of conventional semi-hermetic piston compressors.
These compressors are extremely quiet and can be fitted with an external housing for sound insulation that reduces the noise level by a further 10 dBA. This makes them the best choice for refrigeration application in city centres and residential areas.
The ZB series also includes the ZB220 (30 hp), the largest Scroll refrigerant compressor on the market. These compressors are approved for refrigerants R407A/F/C, R448A/R449A, R404A/R507A, R513A and R134a.

Lubrication
Ester oil, factory filled: Emkarate RL 32 3MAF (531.2827 1 litre can)

Standard pack contents
• Compressor filled with ester oil
• Rotalock connection
• Oil inspection glass
• Oil service fitting for filling and draining the oil
• Rubber vibration damper
• ZB15 to ZB45 with internal overcurrent breaker and pressurised gas thermostat (included loose)
• ZB56 to ZB11 INT69-SCY electronic motor protection system with integrated pressurised gas overheat protection
